Flower tea heat pump tea dryer

Heat Pump Tea Leaf Drying Machine For Flower Tea Leaf Why Choose KINKAI Heat Pump?Why We can stand in this area for 10 years?give you the best sevicesprovide you the most affordable product with good quality.KINKAI Dehydrator Use for :Dry vegetables like  Radish, lettuce, pumpkin, carrots, spinach, cassava etcDry

Featured Products

Heat Pump Tea Leaf Drying Machine For Flower Tea Leaf

Why Choose KINKAI Heat Pump?
Why We can stand in this area for 10 years?
give you the best sevices
provide you the most affordable product with good quality.

KINKAI Dehydrator Use for :
Dry vegetables like  Radish, lettuce, pumpkin, carrots, spinach, cassava etc
Dry fruits like  Apple, lemon, mango slices, dried longan, dried longan etc
Dry meat: fish, Sausage, jery beef, duck, ham ect
Others it can dry noodle, wooden, stick incense, herbs, floers ect.

KINKAI Dehydrator Functions:

Heating drying
Cooling drying
Heating +dehumidify drying

Heat Pump Tea Leaf Drying Machine for Flower Tea Leaf

What is Heat Pump Dryer?
A device that transfers heat from a colder area (ambient temperature) to a hotter area (drying chamber) by using mechanical energy, as in a refrigerator.


How it works?
Heat pump dryer is use of reverse Carnot principle .With free air to absorb heat and transfer it to the drying chamber, drying room temperature to achieve improved, with the appropriate humidity and dehumidification equipment to achieve dry materials. heat pump dryer Compressor - heat exchangers - Chokes - heat sink (outside the machine) - Compressor and other devices constitute a refrigerant cycle system. Under the action of the compressor in the refrigerant circulating in the system flow, it is done in the gaseous booster compressor heating process (temperature up to 100 ºC), releasing it into the machine dry in room temperature air heated by the heat, while they have been and converted to liquid cooling flow, when it runs out machines, liquid absorbs heat quickly evaporates once again transformed into a gaseous state, while the temperature dropped to minus 20 ºC-30 ºC, then the air around the heat sink will continuously transferring heat to the refrigerant. Refrigerant continuous cycle to achieve the heat in the air transport to the drying room heating room air temperature to achieve the purpose of dry material.
Heat Pump Tea Leaf Drying Machine for Flower Tea Leaf

6 Normal Models of KINKAI Heat Pump Dryer

Recommend Dryer + Drying Chamber Size
Item  DescriptionProduct CapacityDrying Chamber size
1One unit JK03RD dryer + drying chamber300KG/batch4000x2000x2200mm
2One unit JK06RD dryer + drying chamber600KG/batch6000x2800x2200mm
3One unit JK12RD dryer + drying chamber1000KG/batch6000x3000x2200mm
4Two units JK03RD dryers + drying chambe1300KG/batch7000x2000x2200mm
5Two units JK06RD dryers + drying chambe1500KG/batch10000x2800x2200mm
6Two units JK12RD dryers + drying chambe3500KG/batch10000x3000x2200mm
 Warm prompt: We can make any drying chamber sizes as your required.

KINKAI Drying Cases
Heat Pump Tea Leaf Drying Machine for Flower Tea Leaf

How to dry chrysanthemums with KINKAI dryer
Phase 1
Raise the temperature to 65-75°C which will be held for 2-3 hours to remove water, to 35-40°C held for 2-3 hours, 40-45°C held for 8 hours, and finally to 50-55°C held for 8 hours. The first-phase drying process takes 18-20 hours.
Phase 2
Reduce the temperature to 35-40°C held for 3-4 hours. Raise the temperature to 45-50°C held for 15 hours, and to 55-60°C for one hour. The second-phase drying process takes about 19-20 hours. (Note: Make sure that the hot air supply is available all the time and is recorded on an hourly basis.
How to dry rosebuds with KINKAI dryer
Remove water and dry rosebuds up: Carefully push the car into the drying cabinet, close the cabinet door, and raise the temperature. Exercise strict control over the temperature in the cabinet to dry the fresh rosebuds up and regularly change the direction of air supply to make sure that they are dried evenly with a bright color.
Take dried rosebuds out of the cabinet: Dry the fresh rosebuds for 8 hours, and then check them by hand. If rosebuds are perfectly parched, they look lustrous and smell fragrant with pedals purplish red or even darker and their receptacle and sepals yellow green, and you can easily crumb pedals into pieces and receptacle into threads. Push the car out of the cabinet.
Sort out dried rosebuds into groups and pack them up for storage: Sort out rosebuds into groups; cool them to the normal temperature; pack up them with nontoxic plastic bag; seal the bag; put the bag into the standard paper boxes; and at last store the boxes in the warehouse meeting the sanitary standards. Keep the warehouse dry and draughty and the boxes 20 centimeters away from the ground and the walls.

Heat Pump Tea Leaf Drying Machine for Flower Tea Leaf

Technical Parameters
ModelUnitJK03RDJK06RDJK10RD
Heating capacityKW12.0026.0035.00
Cooling capacityKW7.5020.0025.00
Power supplyV/PH/HZ220/1/50 or 380/3/50380 / 3 / 50380 / 3 / 50
Power
input
CompressorsKW2.805.309.30
Evaporator Fan motorsKW0.780.781.50
Hot air circulating fan motorsKW2.002.002.00
Dehumidify fan motorKW0.370.370.55
Auxiliary electric heaterKW3.006.009.00
Total Running currentA35.00 or 20.0030.0045.00
Dehumifification amountL/H122540
Max. hot air temperatureºC757575
Working ambient temperatureºC-10 ~45-10 ~45-10 ~45
NoisedB(A)757575
Hot air circulating fan motorsPower input/qty250W/unit250W/unit250W/unit
Wind volume2500m3/H/unit2500m3/H/unit2500m3/H/unit
fan moter quantity6 units8 units8 units
Dimension(L*W*H)mm1650*960*12801730*1220*12802100*1460*1590
WeightNet weightKg210385480
Gross weight240420540

Buying Guide
Recommend Dryer + Drying Chamber Size
Item  DescriptionProduct CapacityDrying Chamber size
1One unit JK03RD dryer + drying chamber300KG/batch4000x2000x2200mm
2One unit JK06RD dryer + drying chamber600KG/batch6000x2800x2200mm
3One unit JK12RD dryer + drying chamber1000KG/batch6000x3000x2200mm
4Two units JK03RD dryers + drying chambe1200KG/batch7000x2000x2200mm
5Two units JK06RD dryers + drying chambe1500KG/batch10000x2800x2200mm
6Two units JK12RD dryers + drying chambe3500KG/batch10000x3000x2200mm
Warm Prompt: We can make any drying chamber sizes as you require.
Heat Pump Tea Leaf Drying Machine for Flower Tea Leaf

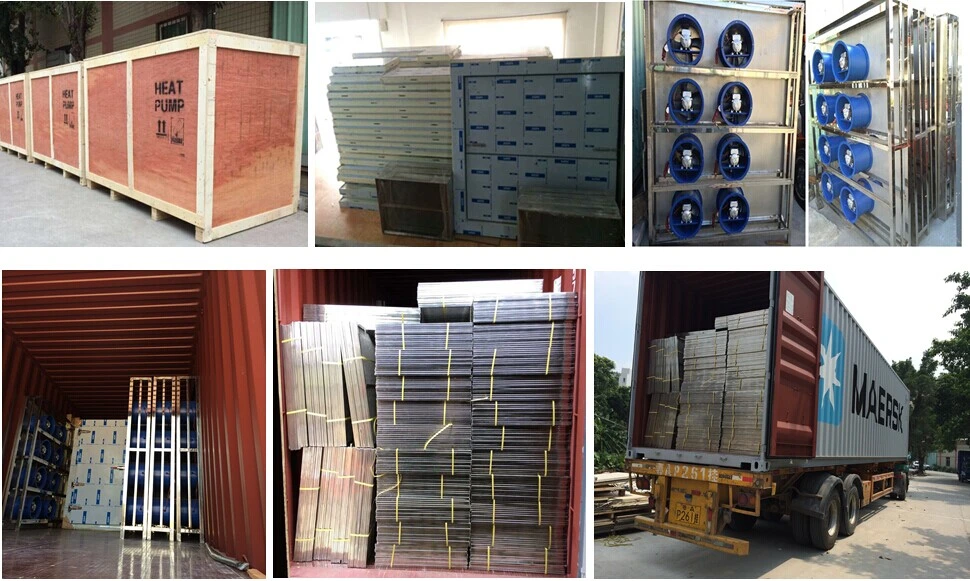

Packing and delivery

1.For heat pump dryer parts with export standred plywood case
2.For whole set dryer machine with 20GP,40GP,40HQ container

Heat Pump Tea Leaf Drying Machine for Flower Tea Leaf

Our Service
A. Payment service
1, T/T
2, L/C (for container order only)
3, Western Union, (for sample order & parts)

B. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need.

C. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year's warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty.


Any questions about the machine, please feel free to contact.
Contact number: 008613570470153
